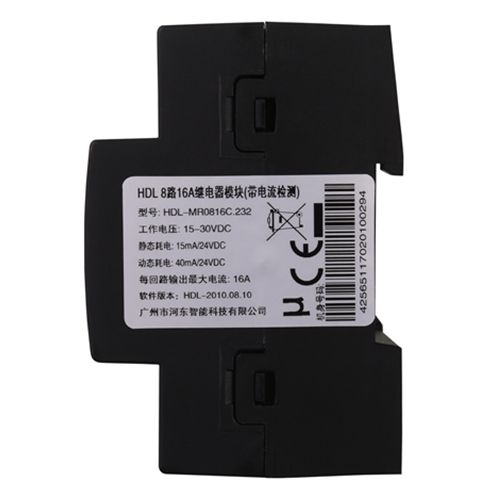

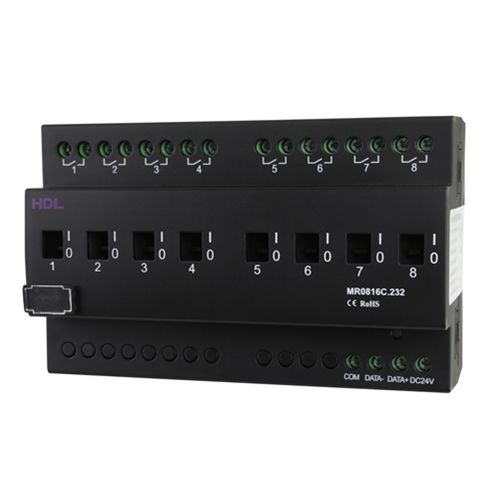

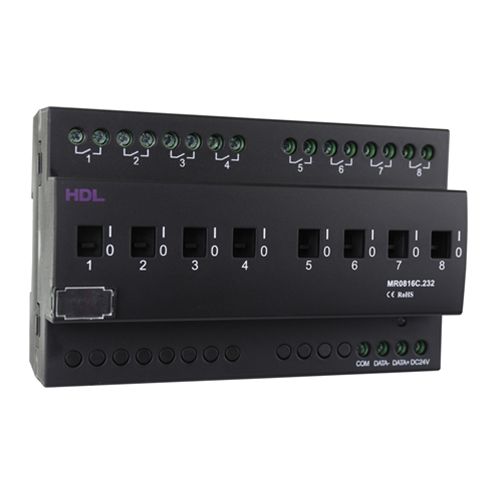

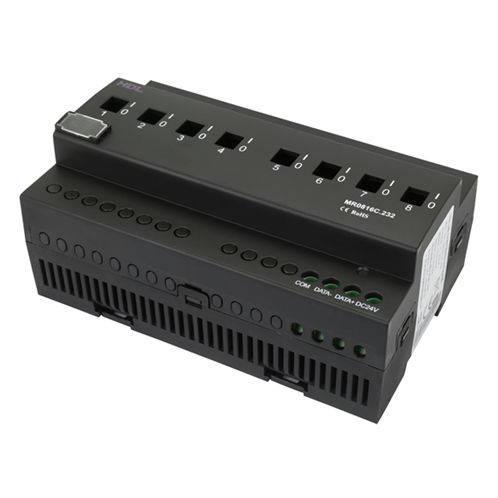

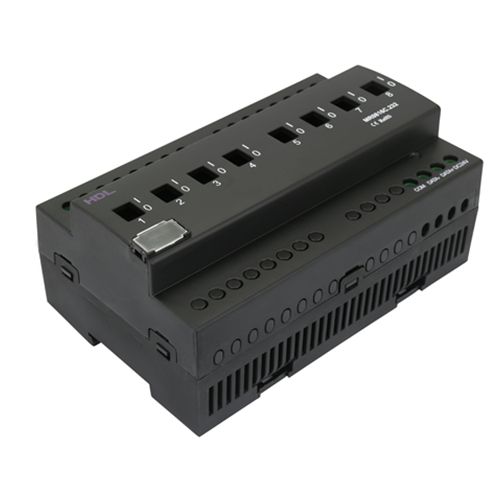

■ 8-channel relay output unit

■ Scene control and sequence control

■ Up to 8 separate zones

■ 16 scenes for each zone, scene running time up to 60 minutes

■ 2 sequences for each zone, up to 8 steps for each sequence

■ Light protection delay for each channel (0-60 minutes)

■ Mass turn-on delay for each channel(0-25 seconds)

■ Manual switch for each channel

■ Stair lamp function of the channel settable

■ Channel current, used time of load and alarm status of each channel can be detected.

■ Selected scene or scene before power off automatically activated when device restarts

■ Specified scene or no operation for options when power off

■ HDL Buspro communication

■ Supports online upgrade

Basic Parameters

Working voltage: 24~30V DC

Working current: 35mA/24V DC

Input voltage: 120V/240V AC (50/60Hz)

Output channel: 8CH/16A

Relay: 50A Magnetic latching relay

Maximum current of each channel:16A

Electronic life time of relay: >60000 (Resistance load)

Protection: Connect a breaker in each channel

External Environment

Working temperature: -5℃~45℃

Working relative humidity: ≤90%

Storage temperature: -20℃~60℃

Storage relative humidity: ≤93%

Specifications

Dimensions :144mm×90mm×64mm

Net weight : 567g

Housing material : Nylon, PC

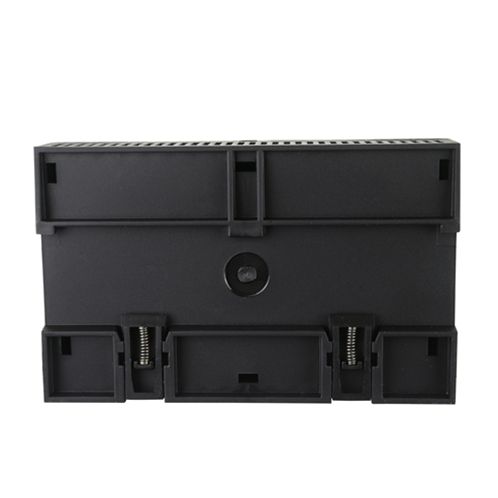

Installation: 35mm DIN rail installation

Protection rating (Compliant with EN 60529) :IP20

Recommended Load Types and Power

240V, 16A, Resistive, 100,000 cycles, 40°C;

240V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;

240V, 16A, Standard Ballast, 30,000 cycles, 40°C;

240V, 16A, Electronic Ballast, 6,000 cycles, 40°C;

120V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;

120V, 16A, Electronic Ballast, 6,000 cycles, 40°C;

120V, 16A, Standard Ballast, 30,000 cycles, 40°C;
