Homepage > Products > KNX > Controllers/Actuators > KNX 1CH 16A Flush-mounted Switching Actuator (EU)

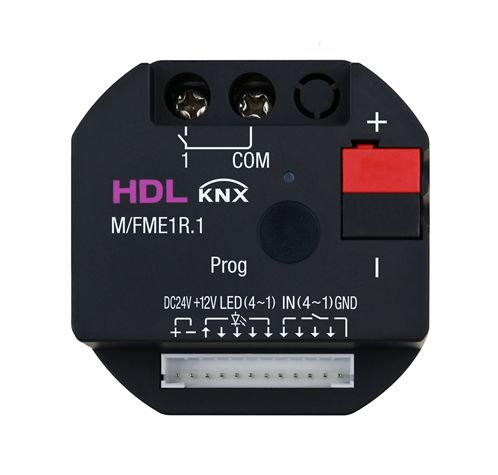

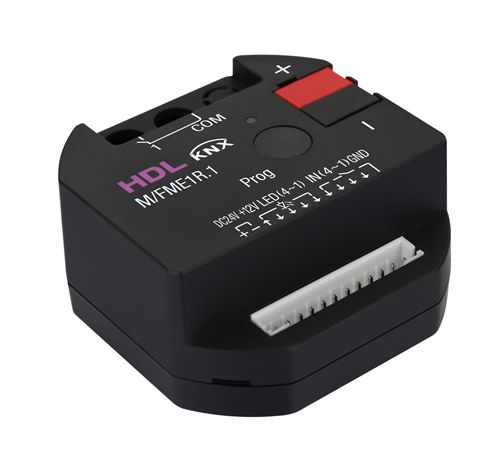

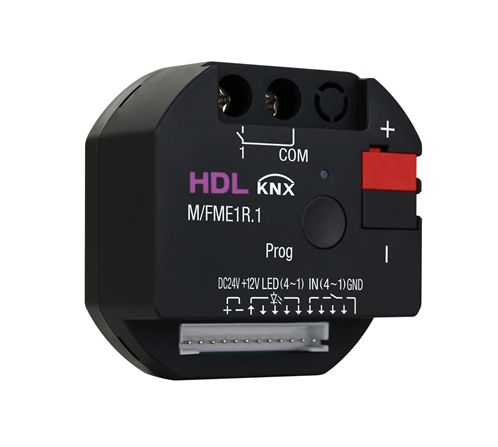

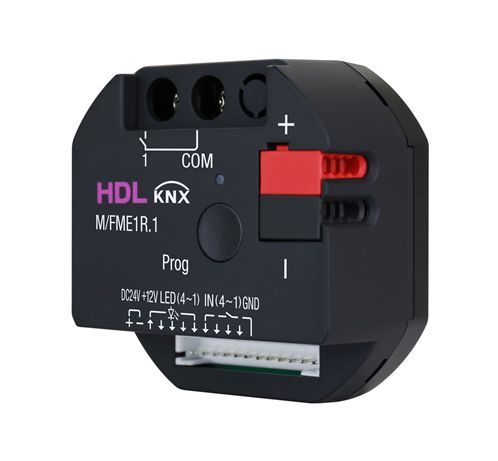

KNX 1CH 16A Flush-mounted Switching Actuator (EU)
model：M/FME1R.1KNX 1CH 16A Flush-mounted Switching Actuator (EU) is an actuator 1CH 16A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan, sockets, etc.
KNX 1CH 16A Flush- mounted Switching Actuator (EU) is an actuator 1CH 16A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting,curtain, fan, sockets, etc.
■ Supports 1CH 16A relay switch control channel(s)
■ 4 dry contact input channels and 4 LED output channels
■ Programming buttons and programming indicators available
■ Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the relay channels on/off.
■ With scene control, staircase light control, delay control functions
■ Channel running time and switching times statistics.
Basic Parameters
Working voltage ：21~30V DC
Working current ：25mA/30V DC
Auxiliary voltage：20~30V DC
Auxiliary current：25mA/24V DC
Relay channel ：1CH, 16A/CH (AC100-240V, 50/60Hz)
Dry contact：4CH dry contact input
LED：4CH LED output, 12mA/CH
Communication ：KNX
Cable diameter of KNX terminal： 0.6-0.8mm
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions：46.8mm×46.8mm×23mm
Net weight： 41g
Housing material：Flame retardant PC
Installation：Wall box
Protection rating (Compliant with EN 60529) ：IP20
