Homepage > Products > KNX > Controllers/Actuators > KNX 3CH 10A Flush-mounted Switching Actuator

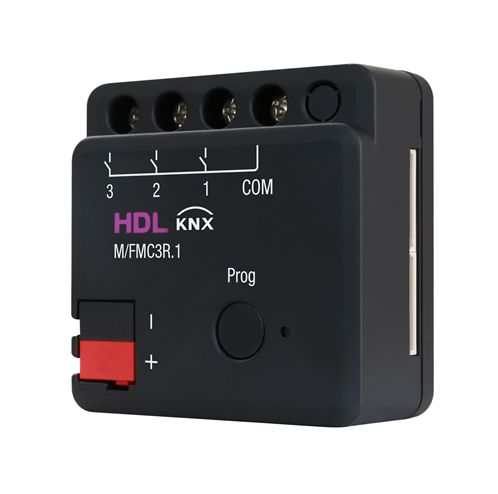

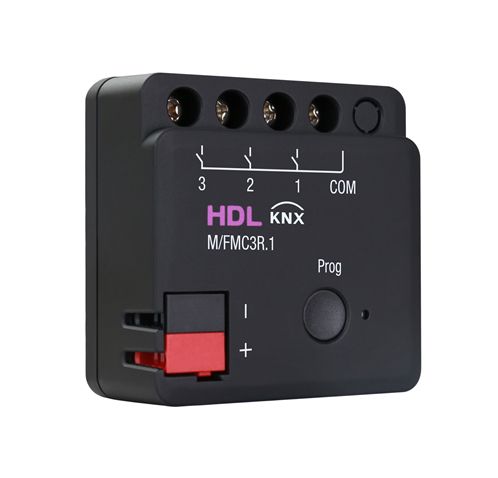

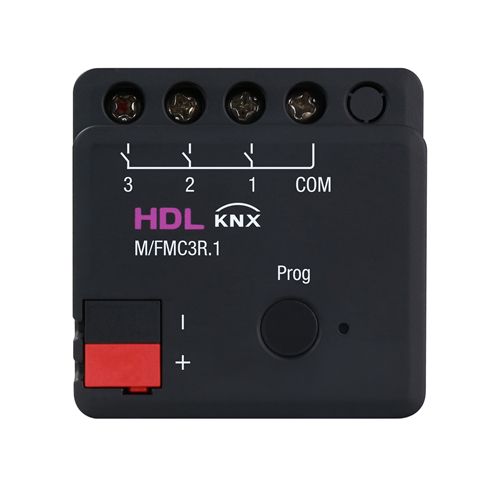

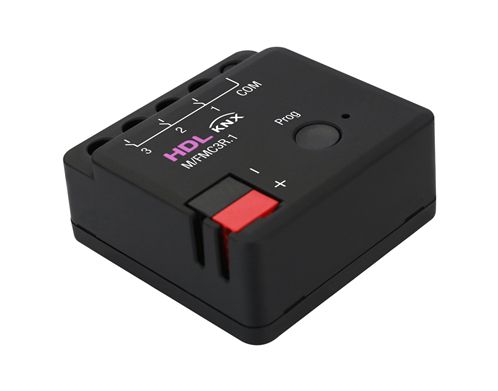

KNX 3CH 10A Flush-mounted Switching Actuator
model：M/FMC3R.1KNX 3CH 10A Flush-mounted Switching Actuator is an actuator with 3CH 10A relay control channels, 7 dry contact input channels and 7 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan, sockets, etc.
KNX 3CH 10A Flush- mounted Switching Actuator is an actuator with 3CH 10A relay control channels, 7 dry contact input channels and 7 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan,sockets, etc
■ Supports 3CH 10A relay switch control channels
■ 7 dry contact input channels and 7 LED output channels
■ Programming buttons and programming indicators available
■ Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the relay channels on/off.
■ With scene control, staircase light control, delay control functions
■ Channel running time and switching times statistics
Basic Parameters
Working voltage ：21~30V DC
Working current ：25mA/30V DC
Auxiliary voltage：20~30V DC
Auxiliary current：53mA/24V DC
Relay channel ：3CH, 10A/CH (AC100-240V, 50/60Hz)
Dry contact： 7CH dry contact input
LED：7CH LED output, 12mA/CH
Communication ：KNX
Cable diameter of KNX terminal：0.6-0.8mm
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions：50mm×50mm×22.8mm
Net weight：57g
Housing material：Flame retardant PC
Installation：Wall box
Protection rating (Compliant with EN 60529) ：IP20
