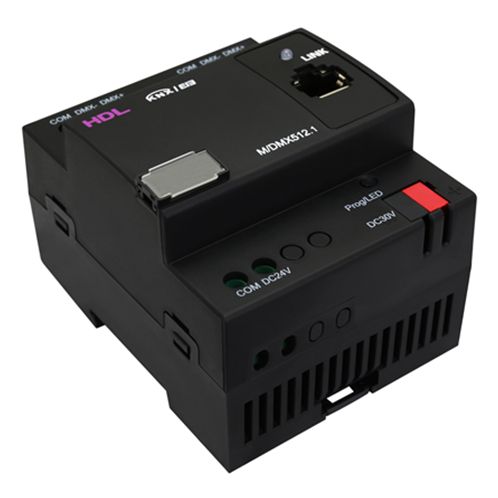

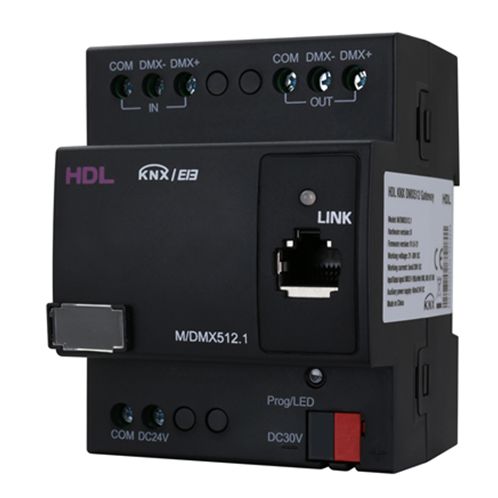

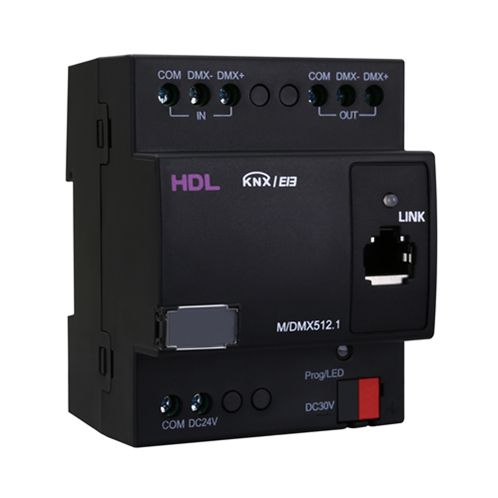

■ 3 working modes: DMX recorder mode, DMX dimming mode ( EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point) .

■ Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX.

■ Store and playback up to 24 programs, with up to 4 hours recording time.

■ DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available).

■ DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available).

■ DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc.

■ DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming.

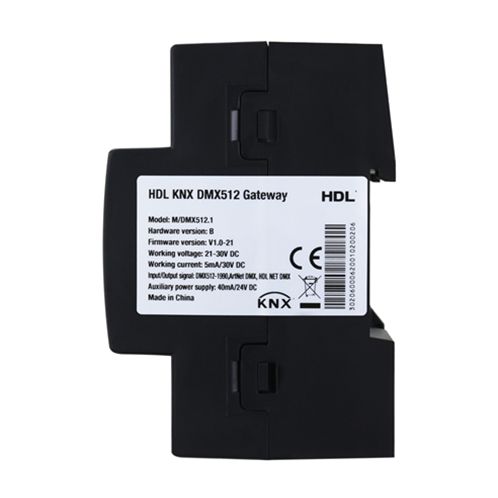

Basic Parameters

Working voltage 21~30V DC

Working current 5mA/30V DC

Communication KNX/EIB

Auxiliary power supply 40mA/24V DC

Cable diameter of KNX terminal 0.6 - 0.8mm

Input / Output signal DMX512-1990, ArtNet DMX, HDL NET DMX

Terminals used for Line In/ Line Out 1~2.5mm2 cable

External Environment

Working temperature -5℃~45℃

Working relative humidity ≤90%

Storage temperature -20℃~60℃

Storage relative humidity ≤93%

Specifications

Dimensions 72mm×90mm×64mm

Net weight 189g

Housing material Nylon

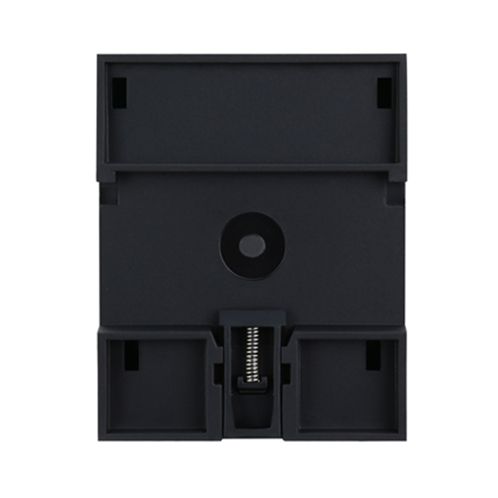

Installation 35mm DIN rail installation

Protection rating (Compliant with EN 60529) IP20
